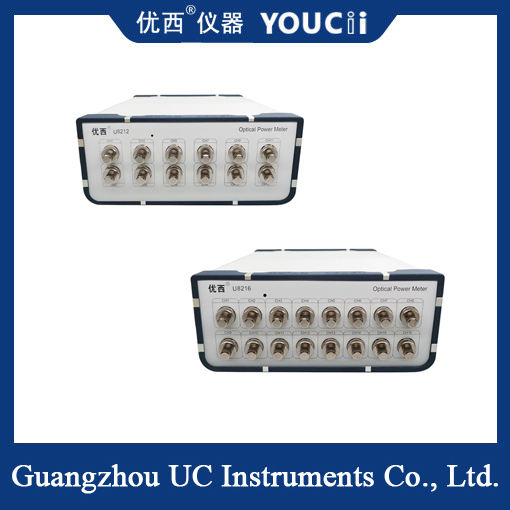

The wavelength range of 12-channel optical power meter is +10 to -65dBm

Product Description:

The optical power meter is a multi-functional and reliable tool, specifically designed for precise and accurate power measurement in optical networks. This power meter can be operated in conjunction with a computer and provides an easy-to-read interface for rapid and efficient data analysis.

With a measurement range of 10 to -65 dBm, this power meter is capable of handling a wide range of power levels, making it suitable for various applications in telecom and datacom networks.  Whether you need to measure high power levels or low power signals, this power meter has you covered.

When it comes to wavelength range and power range measurements, this optical power meter excels in providing accurate and reliable results.  Whether you're working with specific wavelength ranges or need precise power measurements, this power meter delivers consistent and dependable performance.

Model #	U8212	U8216	U8212B	U8216B
Number of Channels	12	16	12	16
Power Range	+10 ~ -65dBm		+25 ~ -50dBm
Wavelength Range	850 ~ 1700 nm
Calibration Wavelength	850/980//1310/1490/1550/1610 nm(or other wavelengths are optional)
Sampling period	1ms (1KHz)
Application Fiber Type	Standard SM and MM up to 62.5 um core size
Absolute Uncertainty (accuracy) at reference condition	± 4% (1200 nm ~ 1610 nm)
Relative Uncertainty (accuracy) at reference condition	＜ 0.02 dB Typical
Linearity (power)	≤ ± 0.06 dB (1200 nm ~ 1610 nm, 0~ -50dBm)
Return Loss	＞ 40 dB
Operation Temperature	0 ～ +40℃
Storage Temperature	-30 ～ +80℃
Recalibration Period	2 years
Dimensions	245 mm W, 105 mm H, 320 mm D
Weight	2.0 kg

The calibration options for this power meter include factory and self-calibration, allowing you to flexibly choose the calibration method that best suits your requirements. Whether you prefer the convenience of factory calibration or the accuracy of self-calibration, this power meter can be customized according to your specific needs.
